Purpose and Application

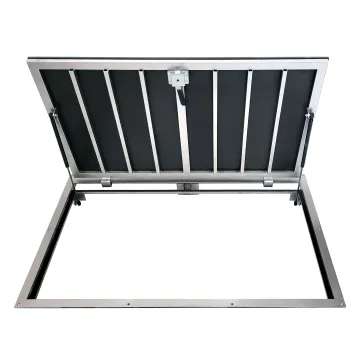

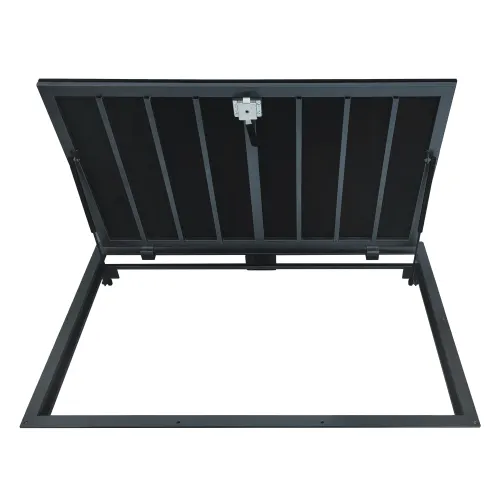

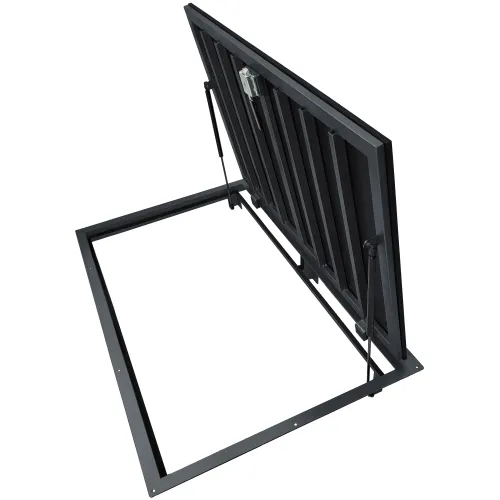

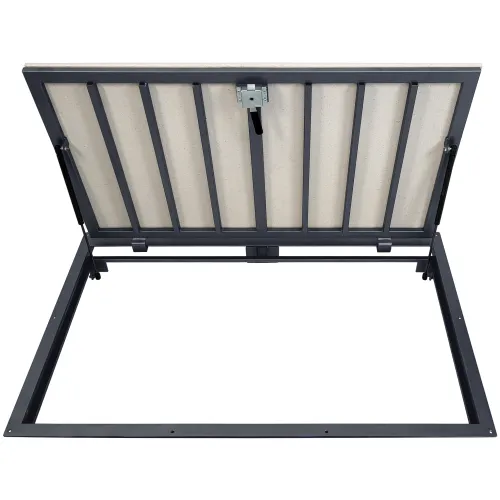

The STANDARD floor hatch with gas springs is designed for quick and easy access to basements, cellars, utility rooms, and various engineering communications.
Hidden Integration and Finishing

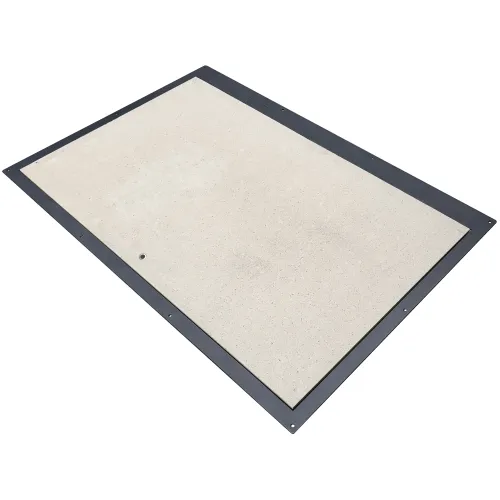

The hatch design allows for easy integration into any type of flooring, creating a continuous surface that maintains the aesthetic integrity of your space. The hatch cover is intended for finishing with ceramic tiles, porcelain stoneware, microcement, microconcrete, wood planks, laminate, linoleum, quartz vinyl, or parquet.
A finishing layer thickness of up to 20 mm is allowed, including the adhesive layer. As an exception, installation of wood planks up to 30 mm thick is permitted.
Reliable Lock and Ease of Use

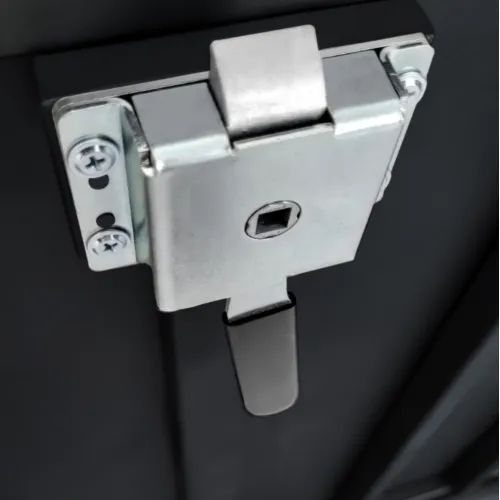

The hatch cover is secured with a durable industrial-grade lock featuring a convenient built-in handle, allowing the hatch to be opened from the inside.
Protection Against External Factors
A rubber seal is integrated along the entire perimeter of the frame, ensuring a tight fit. This provides complete protection against the ingress of dust and moisture.
Coating and Durability
The product is coated with a powder paint followed by thermal polymerization, which ensures high wear resistance and long-lasting surface durability.

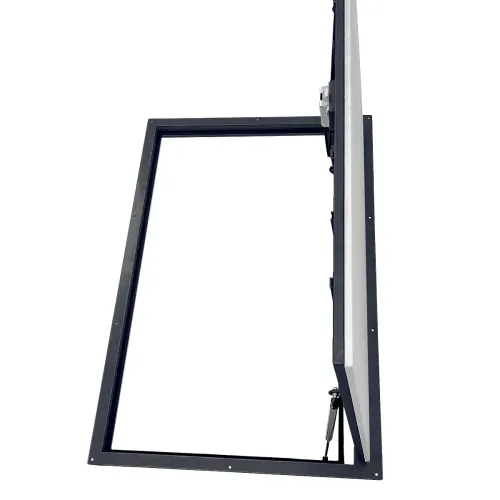

Gas Springs and Smooth Opening
The hatch is equipped with high-quality European gas springs, individually selected for each size and load. These gas springs ensure smooth opening and controlled deceleration of the cover.
Materials and Construction
The hatch frame is made of S235JR grade steel, which is widely used in various structural applications. To ensure strength and corrosion resistance, stainless steel pins are used in the hinges.

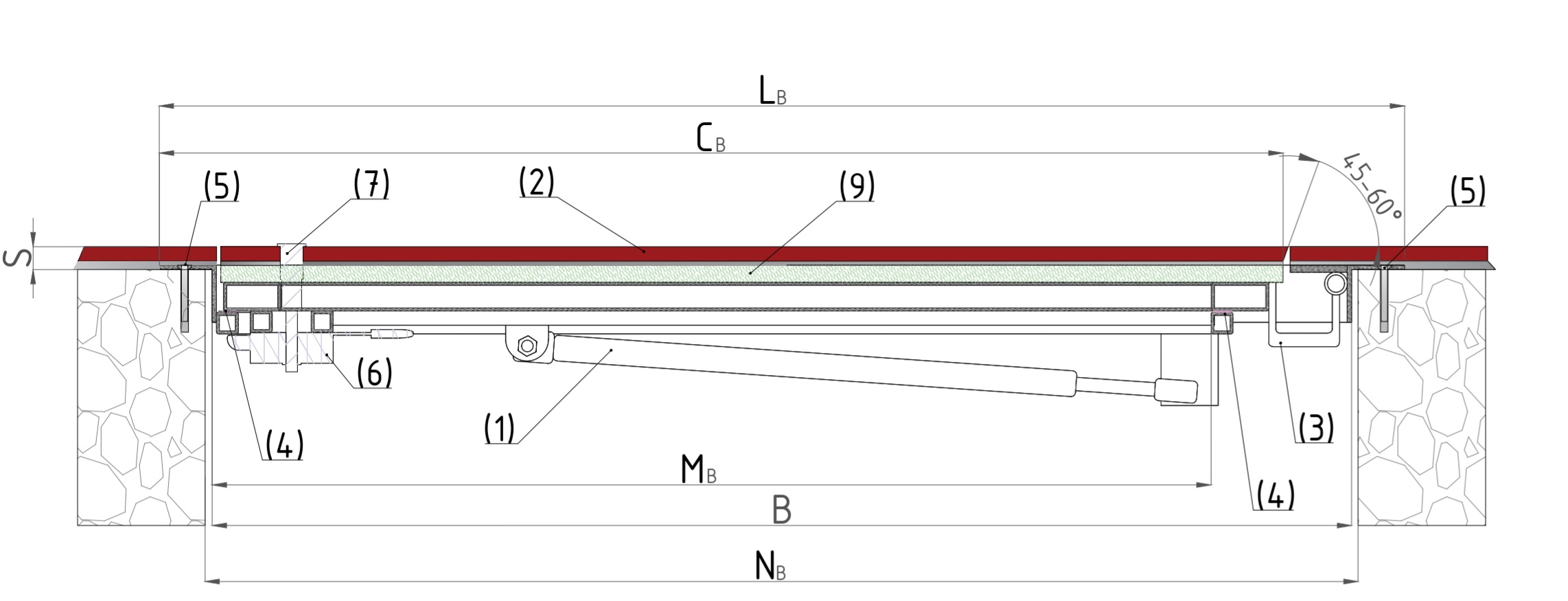

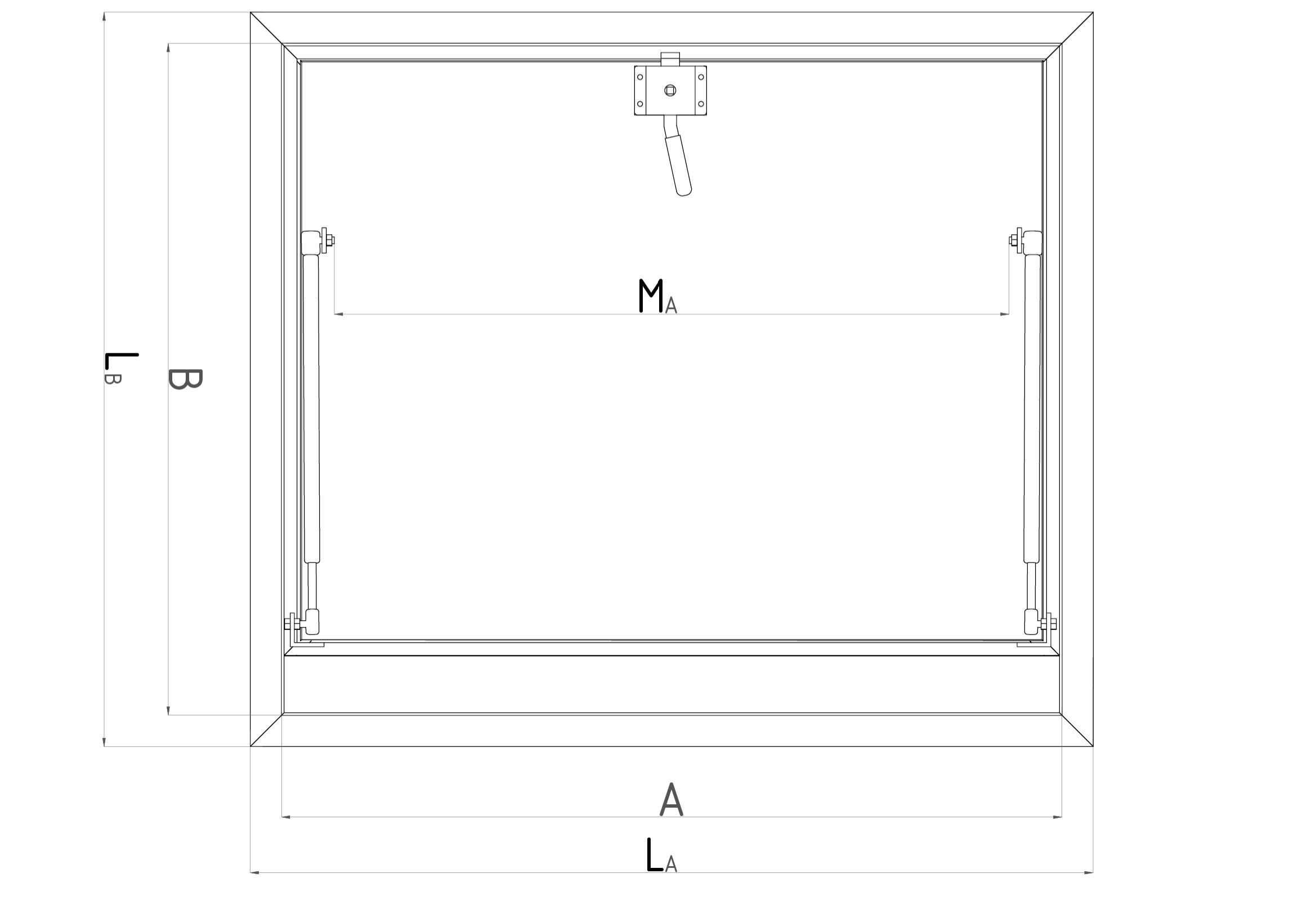

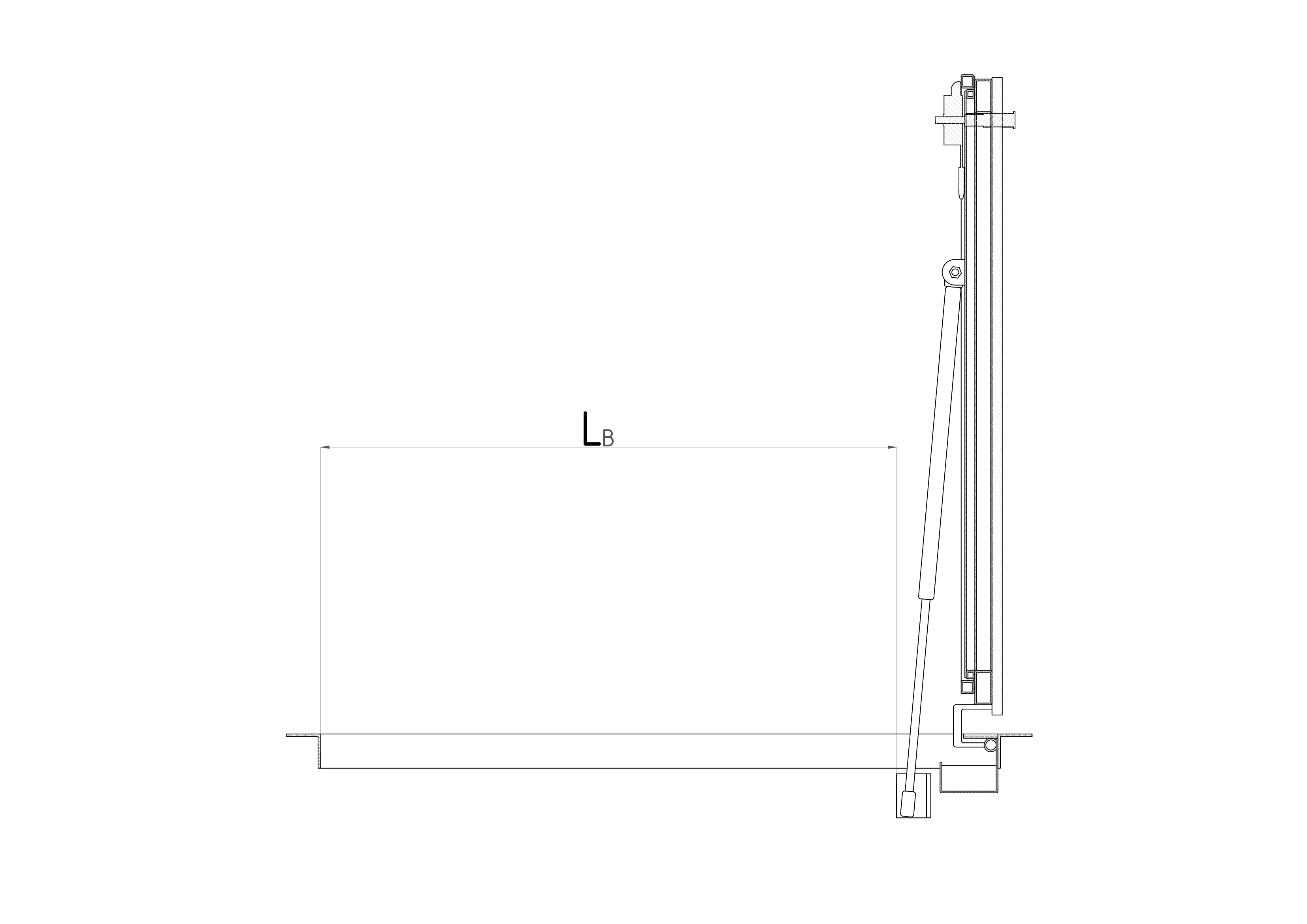

| А | Mounting Width (hinge side) |
| B | Mounting Height |
| LA = A + 74mm | Overall width of the hatch (hinge side) |
| LB = B + 74mm | Overall height of the hatch |
| CA = A - 12mm | Door width (hinge side) |
| CB = B - 52mm | Door height |
| NA = A + 10mm | Width of the installation opening (hinge side) |
| NB = B + 10mm | Height of the installation opening |
| MA = A - 38mm | Clear opening width (hinge side) |
| MB = B - 117mm | Clear opening height |
| S ≤ 20mm | Thickness of the finishing material (including adhesive) |
| D = 95mm | Frame depth |
| (1) | Gas spring / Electric actuator |
| (2) | Finishing material / tread plate |
| (3) | Hinge |
| (4) | Seal |
| (5) | Anchors |
| (6) | Lock |
| (7) | Lock cylinder (height adjustable) |
| (8) | Insulation |
| (9) | Hatch cover surface material |
| (10) | Slab |
