Purpose and Application

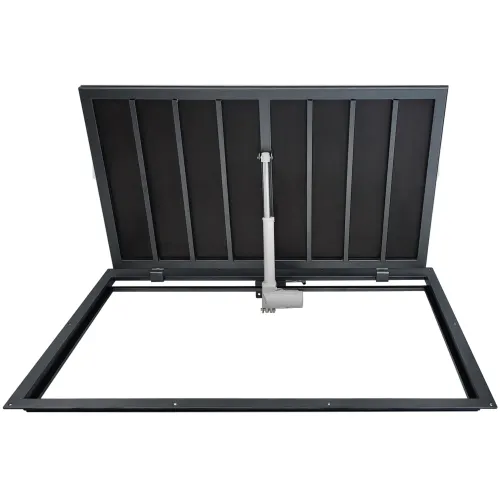

The STANDARD ELECTRO floor hatch is designed for quick and convenient access to basements, cellars, technical areas, and various utility systems.
Seamless Integration and Finishing

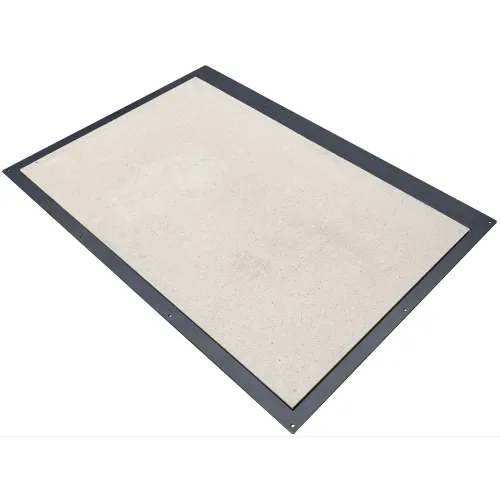

The hatch’s design allows for seamless integration into any floor covering, creating a continuous surface that maintains the aesthetic integrity of your space. The hatch cover is intended to be tiled with ceramic tiles, porcelain stoneware, microcement, microconcrete, wood planks, laminate, linoleum, quartz vinyl, or parquet. A finish layer thickness of up to 20 mm, including adhesive, is acceptable. As an exception, boards up to 30 mm thick may be used.
Opening Mechanism and Ease of Use

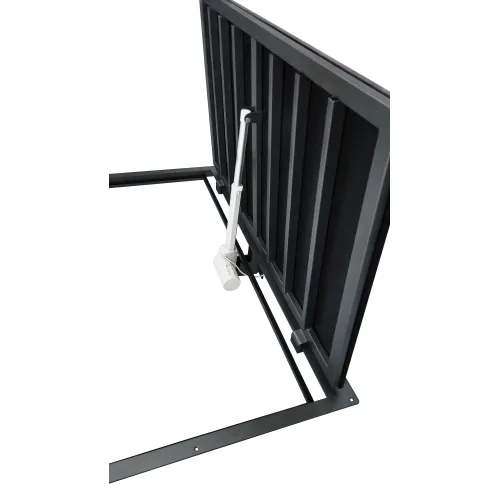

The electric lifting and locking mechanism for the hatch is remotely controlled — via a wireless remote or a wall switch. Regardless of the surface type, weight, or dimensions of the structure, opening and closing are automatic, fast, and effortless — just one press is enough.
Automation Kit: Functionality and Reliability
The kit includes:
Electric Actuator
Silent operation — ideal for residential spaces
Protection rating IP66W — fully sealed, resistant to water jets
Requires no regular maintenance
Controller (Control Unit)
Protection rating IP69K — highest level of dust and water resistance
Built-in temperature sensor — prevents overheating
Waterproof connectors
Power Supply
Wireless Remote
Operating range — up to 8 meters
Cable Kit
- Cables for connecting wall switches — 5 m, 2 m
- Cables for connecting the actuator and the power supply to the controller
- Splitter for connecting two switch cables
- Additional extension cable from the controller to the actuator — 1 m
Guaranteed Safety and Reliability
Pinch Protection: If any body part or foreign object comes into contact during lid movement, the actuator automatically stops — safe for children, adults, and pets
Electromagnetic Compatibility: The device does not interfere with other equipment and is resistant to external electromagnetic influences
Structural Durability: Resistant to damage and ensures stable operation throughout its service life
Electrical Safety: Protection against electric shock — compliant with international standards
Installation
Installation is simple and requires no special skills.
Protection Against External Elements
A rubber seal runs along the entire perimeter of the lid, ensuring a tight fit. This provides full protection against dust, moisture, and unwanted odors.
Coating and Durability
The unit is coated with a powder paint that undergoes polymerization in a thermal oven, delivering high resistance to wear and long-lasting surface durability.
Materials and Construction
The hatch frame is made of S235JR-grade steel, commonly used in various construction applications. To ensure strength and corrosion resistance, stainless steel pins are used in the hinges.

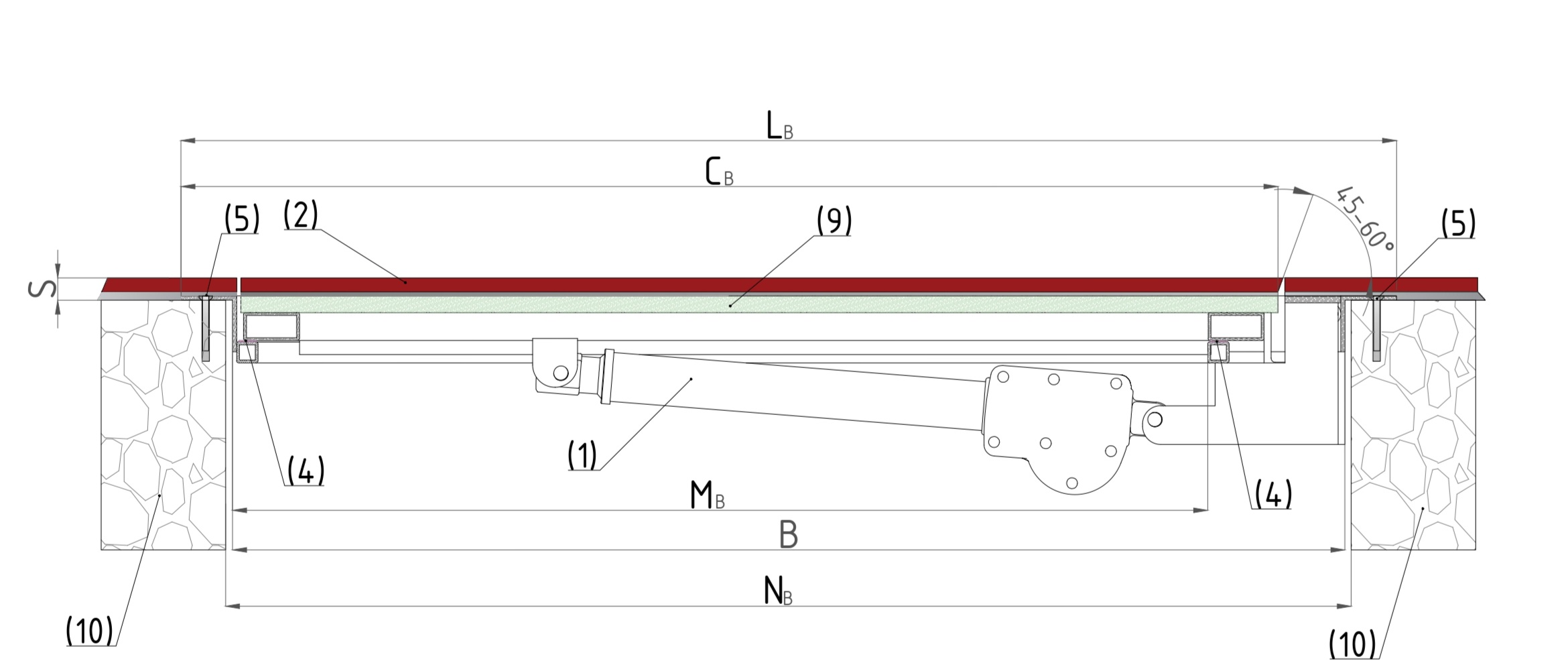

| A | Mounting Width (hinge-side) |
| B | Mounting Height |
| LA = A + 74mm | Overall width of the hatch (hinge side) |
| LB = B + 74mm | Overall height of the hatch |
| CA = A - 12mm | Door width (hinge side) |
| CB = B - 52mm | Door height |
| NA = A + 10mm | Width of the installation opening (hinge side) |
| NB = B + 10mm | Height of the installation opening |
| MA = A - 38mm | Clear opening width (hinge side) |
| MB = B - 117mm | Clear opening height |
| S ≤ 20mm | Thickness of the finishing material (including adhesive) |
| D = 103mm | Frame depth |
| (1) | Gas spring / Electric actuator |
| (2) | Finishing material / tread plate |
| (3) | Hinge |
| (4) | Seal |
| (5) | Anchors |
| (6) | Lock |
| (7) | Lock cylinder (height adjustable) |
| (8) | Insulation |
| (9) | Hatch cover surface material |
| (10) | Slab |
