Purpose and Application

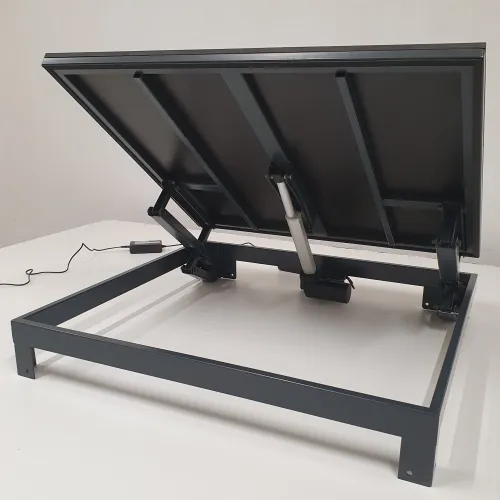

The LIft ELECTRO floor steel hatch with electric drive is designed for quick and easy access to basements, cellars, utility rooms, and various engineering communications.
Hidden Integration and Finishing

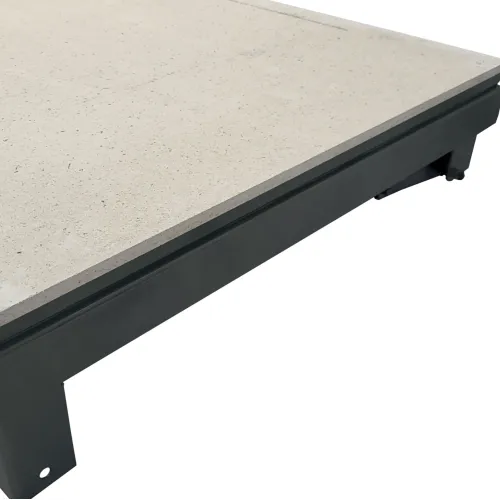

This model is compatible with all types of subfloor structures and is engineered for installation into pre-existing openings, including those with completed floor finishes. The hatch design allows for easy integration into any type of flooring, creating a continuous surface that maintains the aesthetic integrity of your space. The hatch cover is intended for finishing with ceramic tiles, porcelain stoneware, microcement, microconcrete, wood planks, laminate, linoleum, quartz vinyl, or parquet.The innovative hinge mechanism allows for the accommodation of floor coverings up to 50 mm in thickness, ensuring compatibility with a wide range of finishing materials without compromising functionality or structural integrity.
Opening Mechanism and Ease of Use

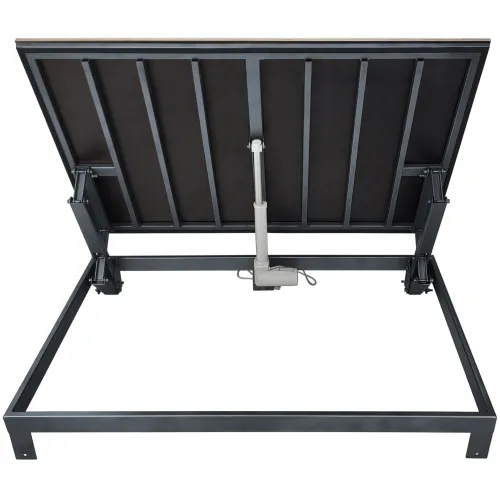

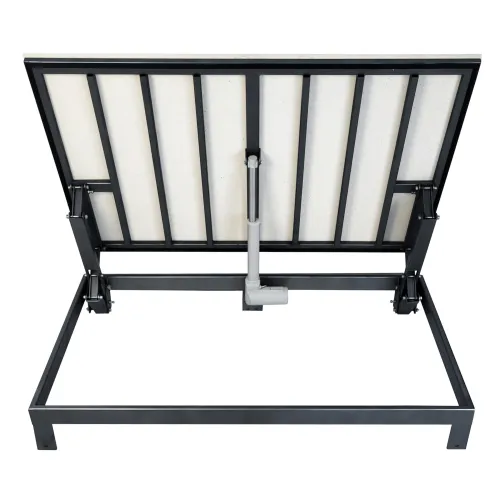

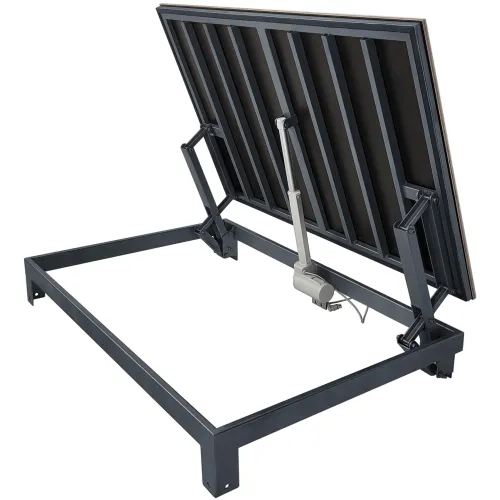

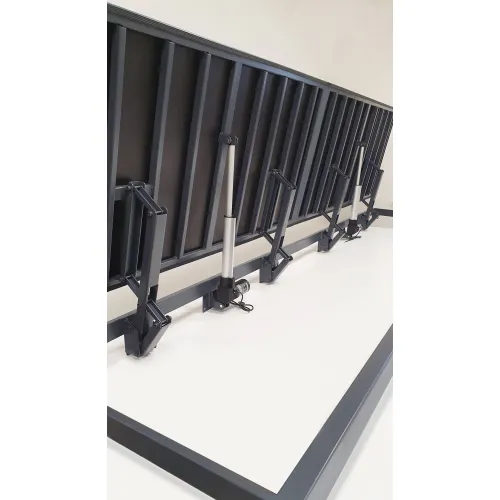

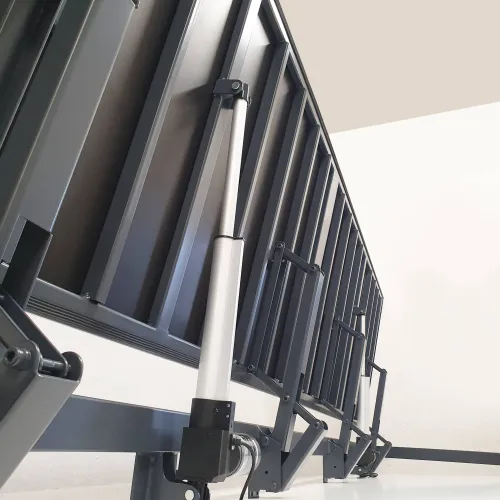

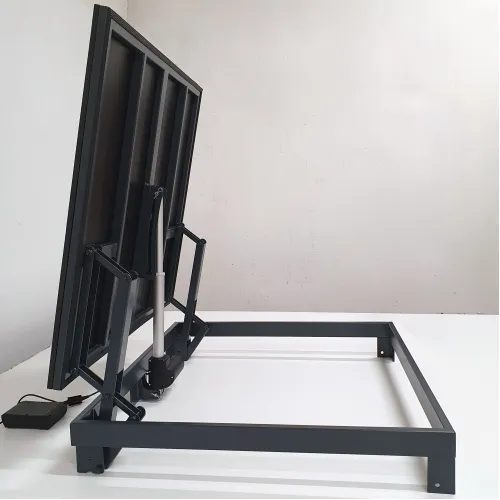

The lifting and locking mechanism is powered by an electric actuator, which is operated via a wireless remote control or a wall-mounted switch. Regardless of the floor covering or weight, a simple press of a button is sufficient to open the hatch. Two actuator options and configurations are available to choose from:
The Basic Package includes:
- An electric actuator with IP44 protection rating
- A controller
- A power supply
- Two wireless remote controls
The PRO Package offers enhanced features and functionality, including:
- A silent electric actuator with an IP66W protection rating
- A waterproof controller with a built-in temperature sensor to prevent overheating and overload
- A power supply
- A backup battery unit for emergency hatch operation during power outages
- Two wireless remote controls with an extended radio signal range
A set of wires for connection to a wall switch Additionally, the PRO Package includes an anti-pinch safety feature: if any part of the body or a foreign object comes into contact with any part of the hatch cover during opening or closing, the electric drive will stop automatically. This ensures maximum safety for you, your children, and your pets. All PRO Package components are designed in a sleek, minimalist style and visually complement one another.
Protection Against External Elements
The hatch is fully sealed. A rubber seal runs along the entire perimeter of the hutch cover, ensuring a tight fit. This provides full protection against dust and moisture.
Coating and Durability
The product is coated with a powder paint followed by thermal polymerization, which ensures high wear resistance and long-lasting surface durability.
Materials and Construction
The hatch frame is made of S235JR grade steel, which is widely used in various structural applications. To ensure durability and corrosion resistance, stainless steel hinges are used.

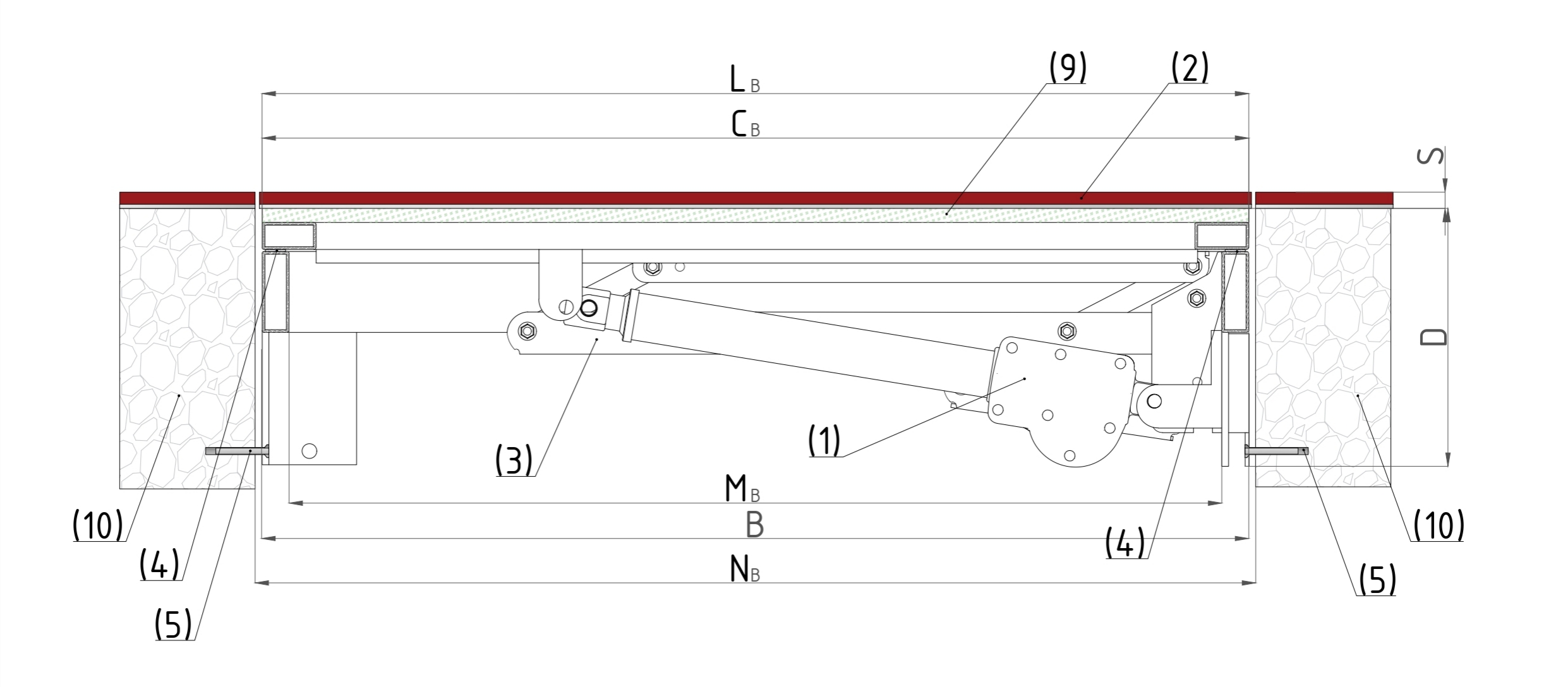

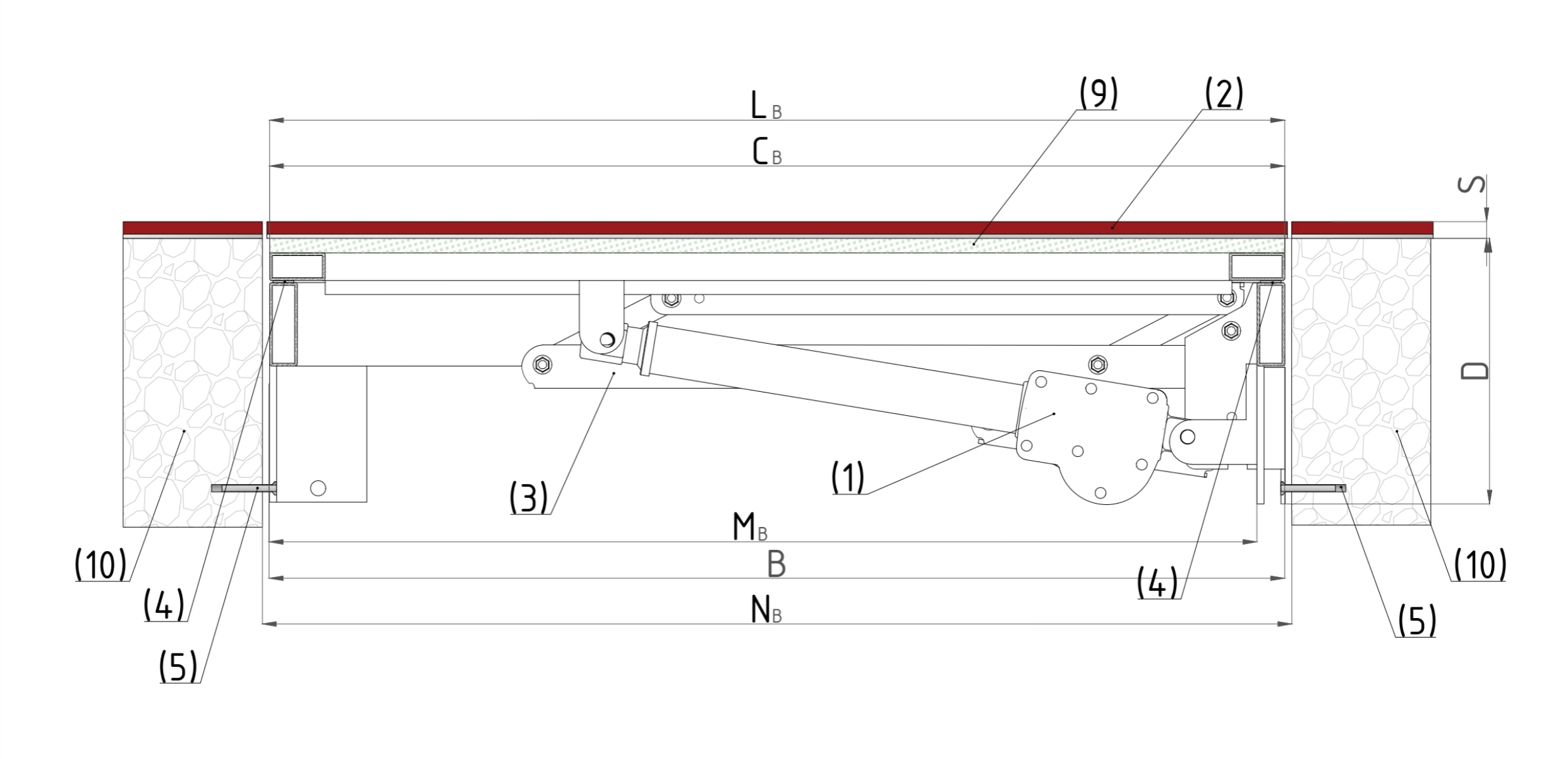

| A | Mounting width (hinge-side) |
| B | Mounting height |
| LA = A | Overall width of the hatch (hinge side) |
| LB = B | Overall height of the hatch |
| CA = A | Door width (hinge side) |
| CB = B | Door height |
| NA = A + 10mm | Width of the installation opening (hinge side) |
| NB = B + 10mm | Height of the installation opening |
| MA = A - 40mm | Clear opening width (hinge side) |
| MB = B - 40mm | Clear opening height |
| S ≤ 50mm | Thickness of the finishing material (including adhesive) |
| D = mm | Frame depth |
| (1) | Gas spring / Electric actuator |
| (2) | Finishing material / tread plate |
| (3) | Hinge |
| (4) | Seal |
| (5) | Anchors |
| (6) | Lock |
| (7) | Lock cylinder (height adjustable) |
| (8) | Insulation |
| (9) | Hatch cover surface material |
| (10) | Slab |
