Purpose and Application

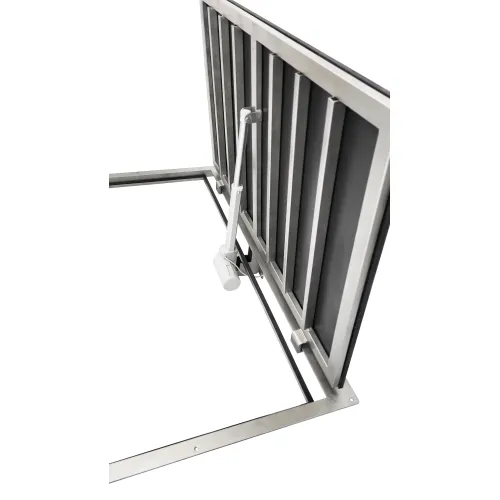

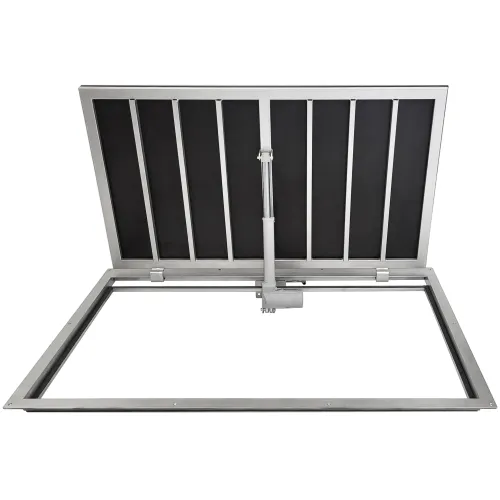

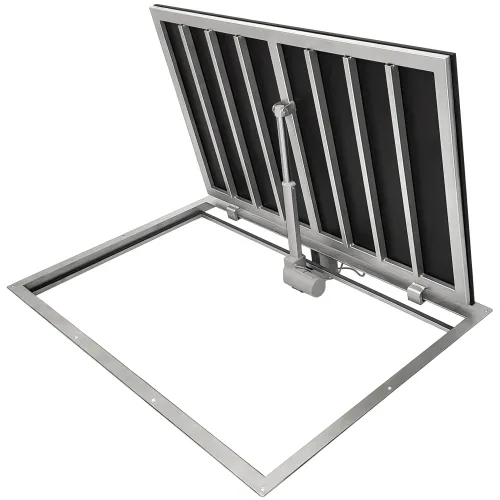

The STANDARD OUTDOOR ELECTRO stainless steel floor hatch with electro drive is designed for quick and convenient access to basements, cellars, utility areas, and various service communications. It is ideally suited for use in high-humidity environments, direct contact with water, and for use in other harsh environments
Hidden Integration and Finishing

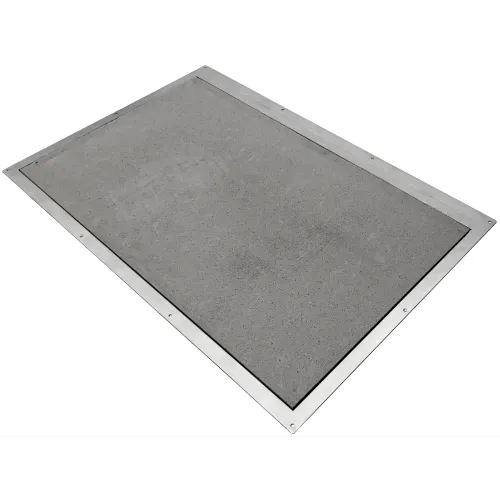

The hatch design allows for seamless integration into any floor surface, creating a continuous plane that preserves the aesthetic integrity of the space. The hatch cover is intended for cladding with ceramic tiles, porcelain stoneware, microcement, microconcrete, or wood planks. A finishing layer thickness of up to 20 mm is permitted, including the adhesive layer. As an exception, wood planks with a thickness of up to 30 mm may be installed.
Opening Mechanism and Ease of Use
The electric lifting and locking mechanism for the hatch is remotely controlled — via a wireless remote or a wall switch. Regardless of the surface type, weight, or dimensions of the structure, opening and closing are automatic, fast, and effortless — just one press is enough.
Automation Kit: Functionality and Reliability
The kit includes:
Electric Actuator
Specifically designed for use in harsh working environments that require a robust construction and long-lasting durability.
Protection rating IP66M — fully sealed, resistant to water jets
Operating temperature range: -40˚C to +80˚C
Requires no regular maintenance
Controller (Control Unit)
Protection rating IP69K — highest level of dust and water resistance
Built-in temperature sensor — prevents overheating
Operating temperature range: -35˚C to +75˚C
Waterproof connectors
Power Supply
Wireless Remote
Operating range — up to 8 meters
Cable Kit
Guaranteed Safety and Reliability
Pinch Protection: If any body part or foreign object comes into contact during lid movement, the actuator automatically stops — safe for children, adults, and pets
Electromagnetic Compatibility: The device does not interfere with other equipment and is resistant to external electromagnetic influences
Structural Durability: Resistant to damage and ensures stable operation throughout its service life
Electrical Safety: Protection against electric shock — compliant with international standards
Installation
Installation is simple and requires no special skills.
Protection Against External Elements
A rubber seal runs along the entire perimeter of the frame, ensuring a tight fit. This provides full protection against dust and moisture.
Coating and Durability
Stainless steel is a material with high corrosion resistance. Two finish options are available: matte stainless steel without coating, or a powder-coated finish with subsequent thermal polymerization, which provides additional resistance to external influences and enhances aesthetic appeal.
Materials and Construction
The hatch frame and hinges are made of stainless steel, ensuring high mechanical strength, corrosion resistance, and a long service life of the product.
| A | Mounting Width (hinge-side) |
| B | Mounting Height |
| LA = A + 74mm | Overall width of the hatch (hinge side) |
| LB = B + 74mm | Overall height of the hatch |
| CA = A - 12mm | Door width (hinge side) |
| CB = B - 52mm | Door width (hinge side) |
| NA = A + 10mm | Width of the installation opening (hinge side) |
| NB = B + 10mm | Height of the installation opening |
| MA = A - 38mm | Clear opening width (hinge side) |
| MB = B - 117mm | Clear opening height |
| S ≤ 20mm | Thickness of the finishing material (including adhesive) |
| D = 103mm | Frame depth |
| (1) | Gas spring / Electric actuator |
| (2) | Finishing material / tread plate |
| (3) | Hinge |
| (4) | Seal |
| (5) | Anchors |
| (6) | Lock |
| (7) | Lock cylinder (height adjustable) |
| (8) | Insulation |
| (9) | Hatch cover surface material |
| (10) | Slab |
