Purpose and Application

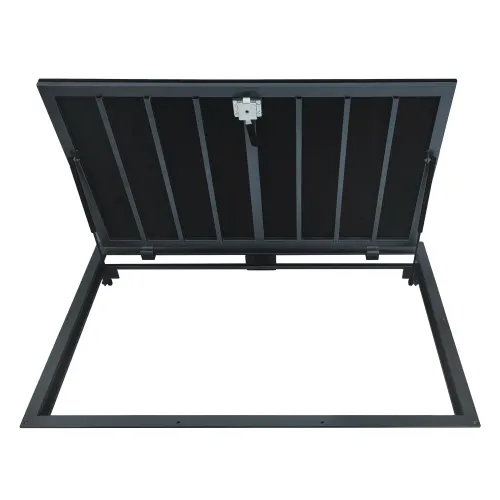

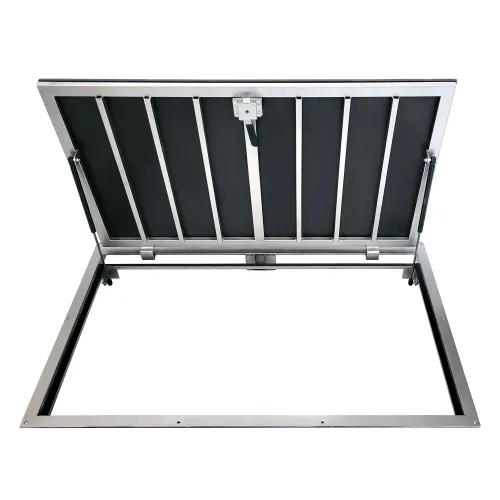

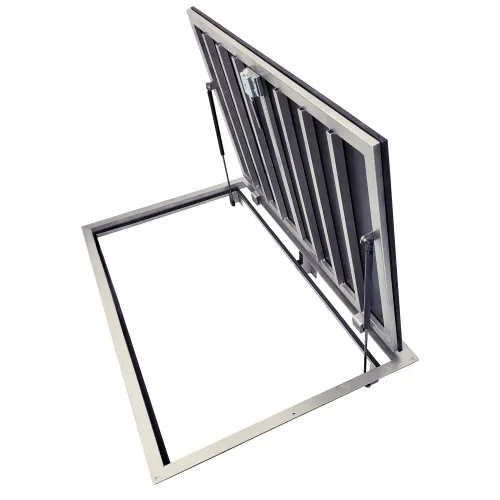

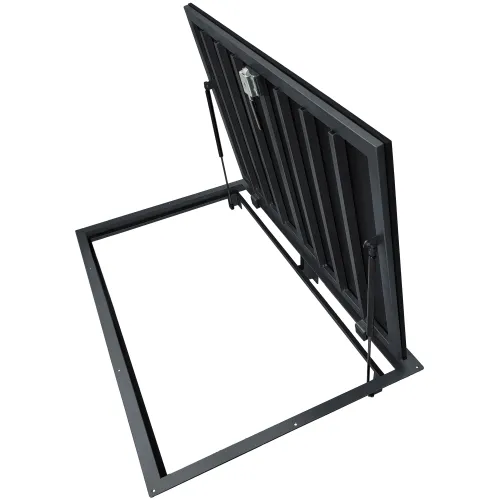

The STANDARD OUTDOOR stainless steel floor hatch with gas springs is designed for quick and convenient access to basements, cellars, utility areas, and various service communications. It is ideally suited for use in high-humidity environments, direct contact with water, and for use in other harsh environments.
Seamless Integration and Finishing
The hatch’s design allows for easy integration into any type of flooring, creating a smooth surface that maintains your space’s aesthetic integrity. The hatch cover can be finished with ceramic tiles, porcelain stoneware, microcement, microconcrete, or wooden planks.
The finish layer may be up to 20 mm thick, including adhesive. As an exception, installation of wooden planks up to 30 mm thick is possible.
Reliable Lock and Ease of Use

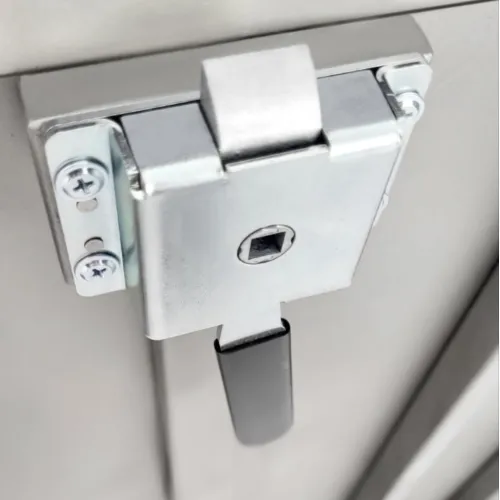

The hatch cover is secured with a durable industrial-grade lock featuring a convenient built-in handle, allowing the hatch to be opened from the inside.
Protection Against External Factors
A rubber seal is integrated along the entire perimeter of the frame, ensuring a tight fit. This provides complete protection against the ingress of dust and moisture.
Coating and Durability
Stainless steel is a material with high corrosion resistance. Two finish options are available: matte stainless steel without coating, or a powder-coated finish with subsequent thermal polymerization, which provides additional resistance to external influences and enhances aesthetic appeal.
Gas Springs and Smooth Opening
The hatch is equipped with high-quality European gas springs, individually selected for each size and load. These gas springs ensure smooth opening and controlled deceleration of the cover.
Materials and Construction
The hatch frame and hinges are made of stainless steel, ensuring high mechanical strength, corrosion resistance, and a long service life of the product.

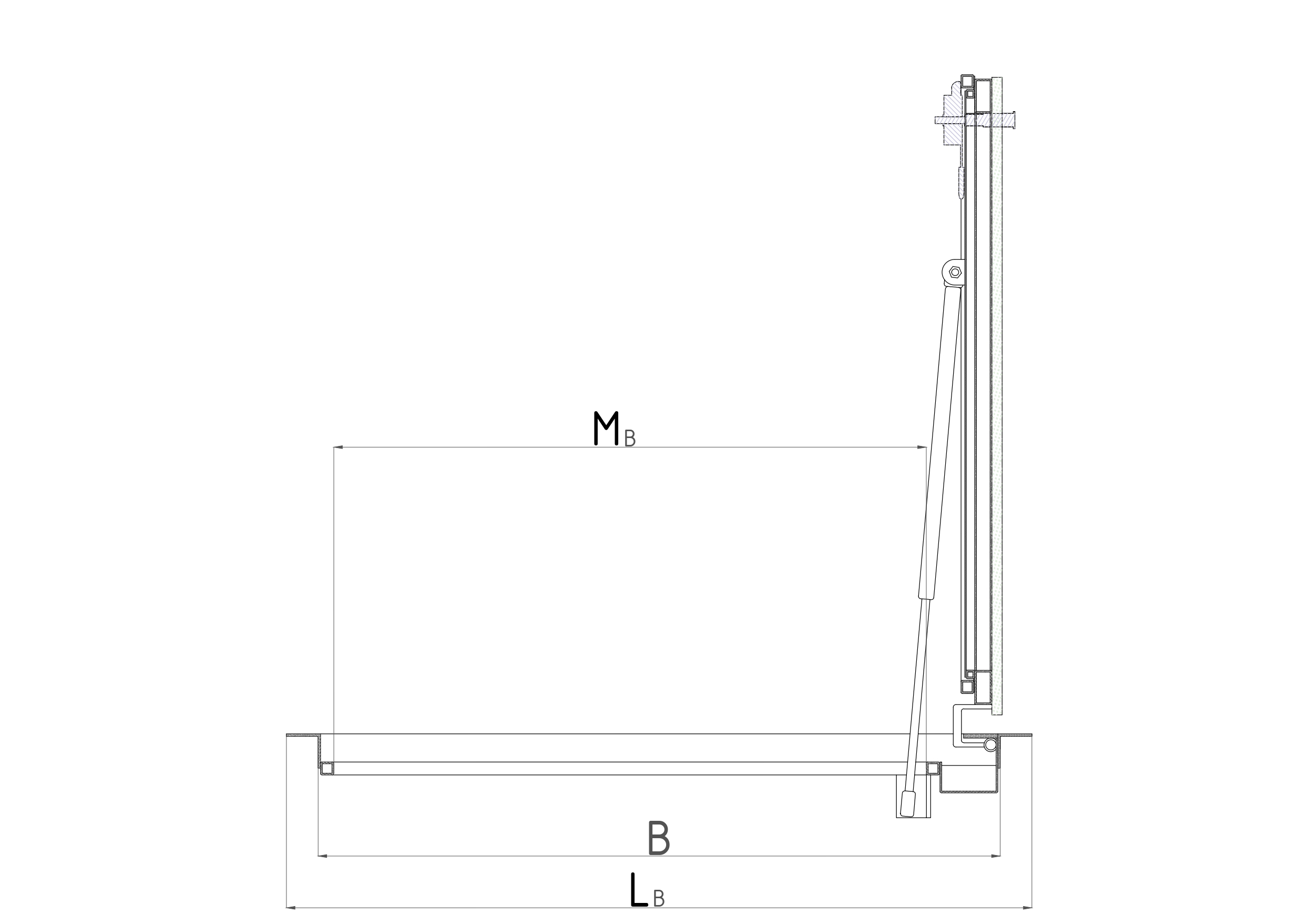

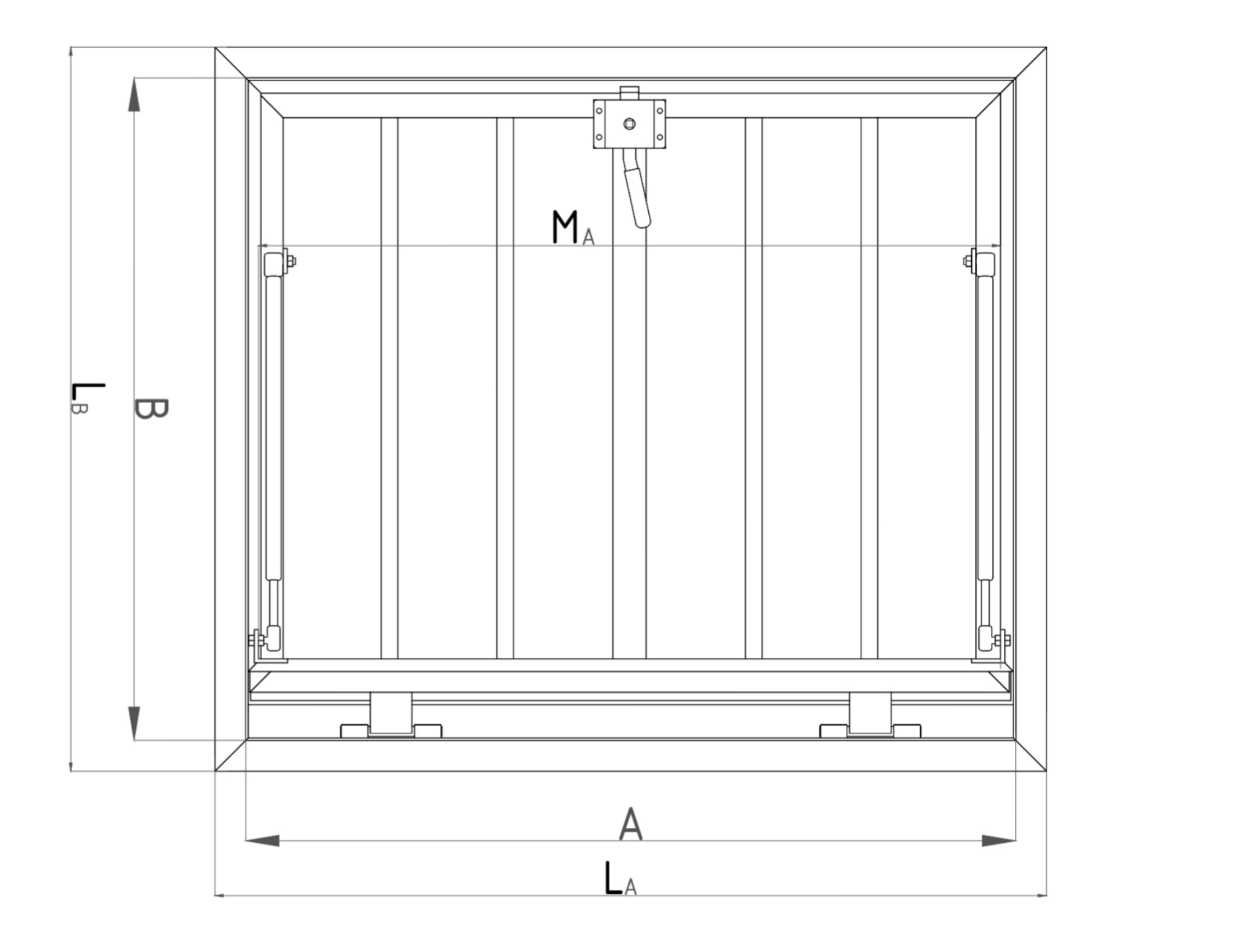

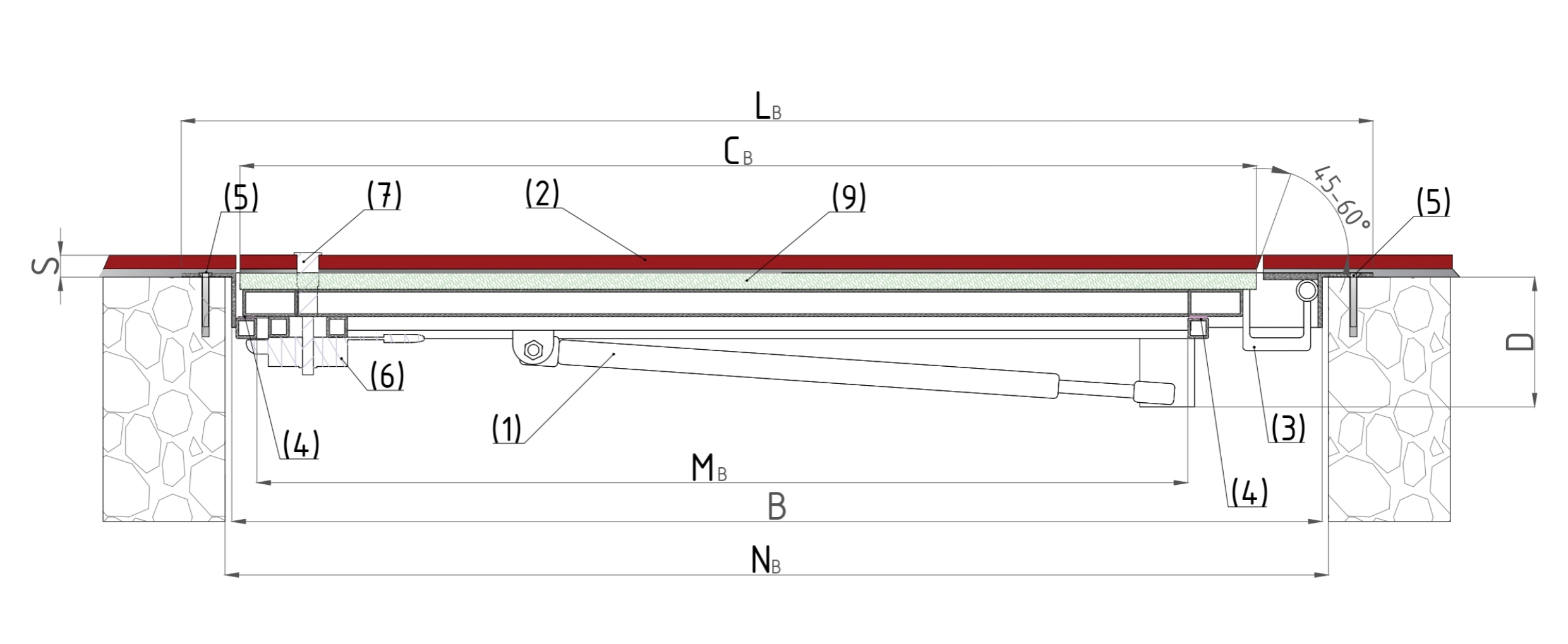

| A | Mounting width (hinge side) |
| B | Mounting height |
| LA = A + 70mm | Overall width of the hatch (hinge side) |
| LB = B + 70mm | Overall height of the hatch |
| CA = A - 14mm | Door width (hinge side) |
| CB = B - 54mm | Door height |
| NA = A + 10mm | Width of the installation opening (hinge side) |
| NB = B + 10mm | Height of the installation opening |
| MA = A - 38mm | Clear opening width (hinge side) |
| MB = B - 117mm | Clear opening height |
| S ≤ 20mm | Thickness of the finishing material (including adhesive) |
| D = 95mm | Frame depth |
| (1) | Gas spring / Electric actuator |
| (2) | Finishing material / tread plate |
| (3) | Hinge |
| (4) | Seal |
| (5) | Anchors |
| (6) | Lock |
| (7) | Lock cylinder (height adjustable) |
| (8) | Insulation |
| (9) | Hatch cover surface material |
| (10) | Slab |
