Purpose and Application

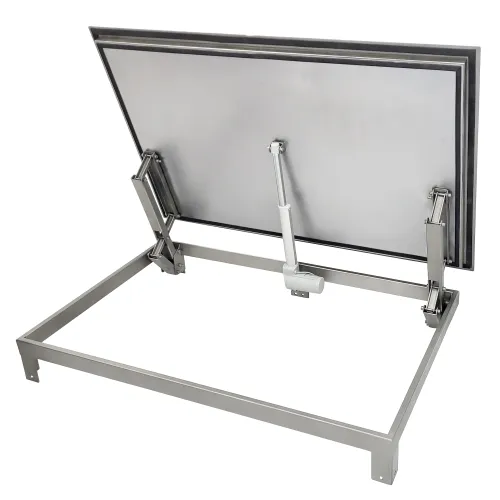

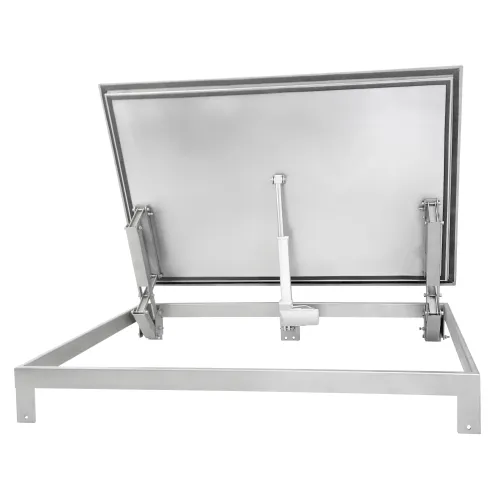

The LIFT ELECTRO insulated stainless steel floor hatch with electro drive with tread plate is designed for quick and convenient access to basements, cellars, utility areas, and various service communications. It is ideally suited for use in high-humidity environments, direct contact with water, and for use in other harsh environments
Integration and Finishing

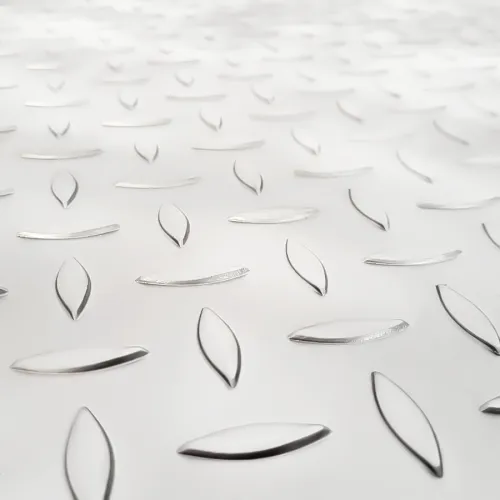

The hatch’s design allows for easy integration into any type of flooring. Its cover is fitted with a 3 mm thick metal treat plate for enhanced durability and slip resistance. This model is compatible with all base types and can be installed into an existing opening with finished flooring
Opening Mechanism and Ease of Use
The electric lifting and locking mechanism for the hatch is remotely controlled — via a wireless remote or a wall switch. Regardless of the surface type, weight, or dimensions of the structure, opening and closing are automatic, fast, and effortless — just one press is enough.
Automation Kit: Functionality and Reliability
The kit includes:
Electric Actuator
Silent operation — ideal for residential spaces
Protection rating IP66W — fully sealed, resistant to water jets
Requires no regular maintenance
Controller (Control Unit)
Protection rating IP69K — highest level of dust and water resistance
Built-in temperature sensor — prevents overheating
Waterproof connectors
Power Supply
Wireless Remote
Operating range — up to 8 meters
Cable Kit
- Cables for connecting wall switches — 5 m, 2 m
- Cables for connecting the actuator and the power supply to the controller
- Splitter for connecting two switch cables
- Additional extension cable from the controller to the actuator — 1 m
Guaranteed Safety and Reliability
Pinch Protection: If any body part or foreign object comes into contact during lid movement, the actuator automatically stops — safe for children, adults, and pets
Electromagnetic Compatibility: The device does not interfere with other equipment and is resistant to external electromagnetic influences
Structural Durability: Resistant to damage and ensures stable operation throughout its service life
Electrical Safety: Protection against electric shock — compliant with international standards
Installation
Installation is simple and requires no special skills.
Protection Against External Elements
The hatch is fully sealed. A rubber double-seal runs along the entire perimeter of the hutch cover, ensuring a tight fit. This provides full protection against dust and moisture. The hatch cover is insulated with PIR thermal insulation. When closed, it helps maintain the designated temperatures in both the lower and upper rooms.
Coating and Durability

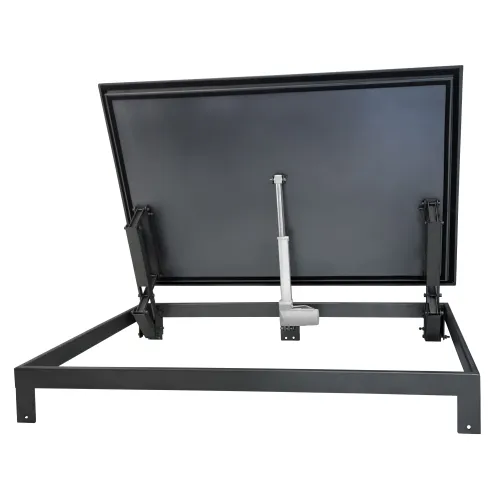

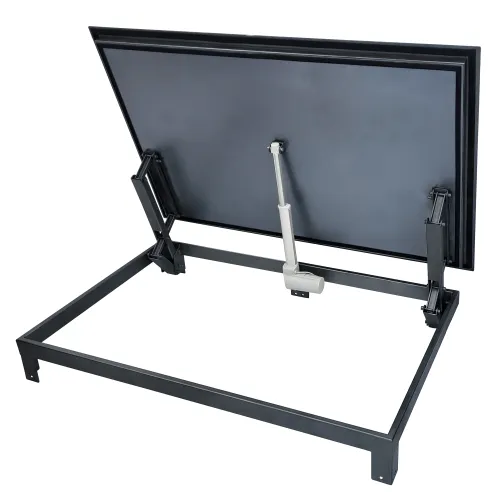

Stainless steel is a material with high corrosion resistance. Two finish options are available: matte stainless steel without coating, or a powder-coated finish with subsequent thermal polymerization, which provides additional resistance to external influences and enhances aesthetic appeal.
Materials and Construction

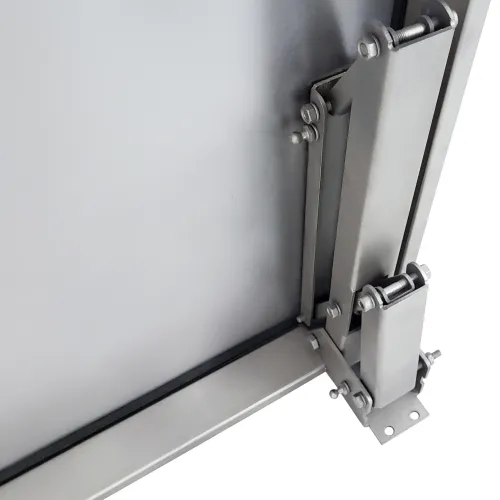

The hatch frame, cover and hinges are made of stainless steel, ensuring high mechanical strength, corrosion resistance, and a long service life of the product.

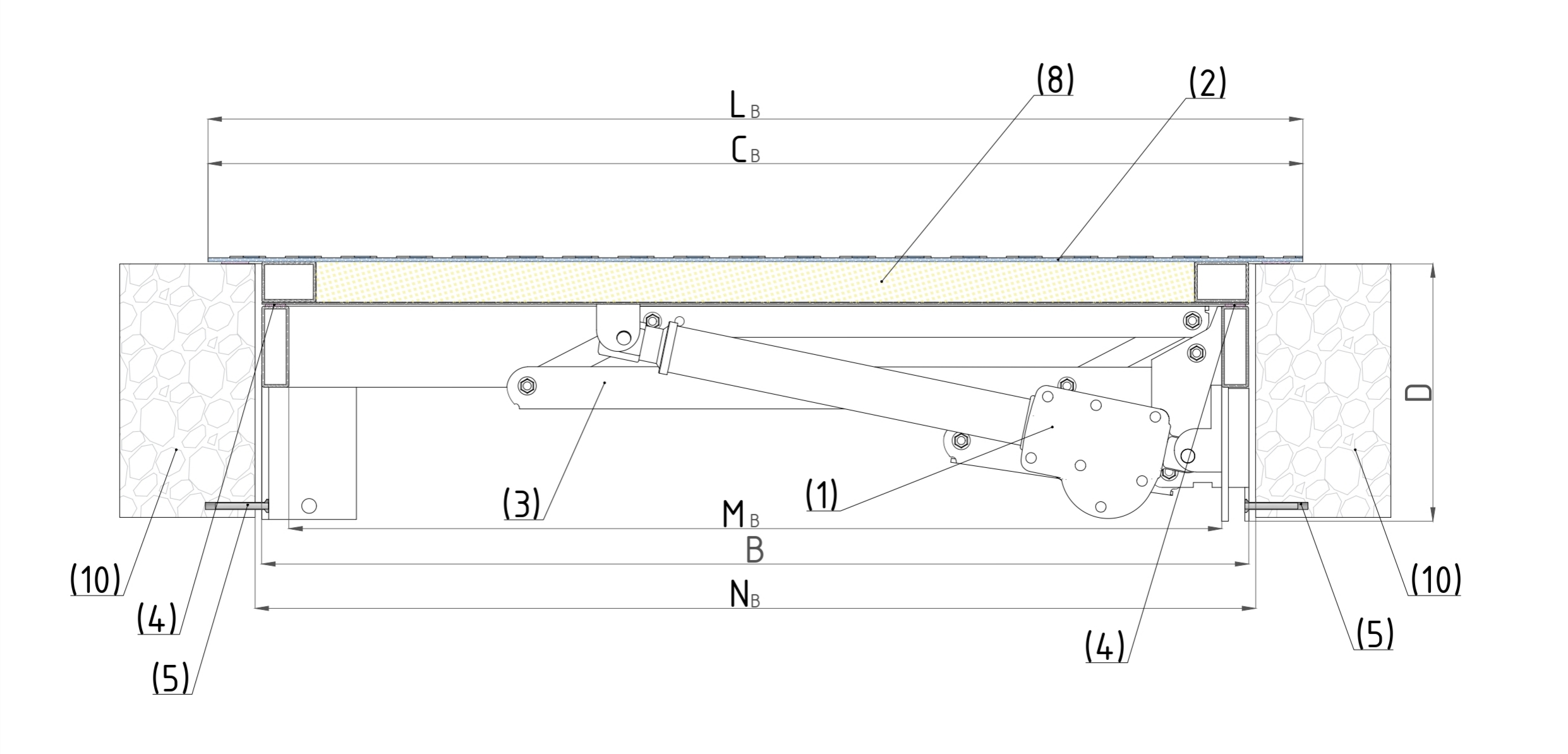

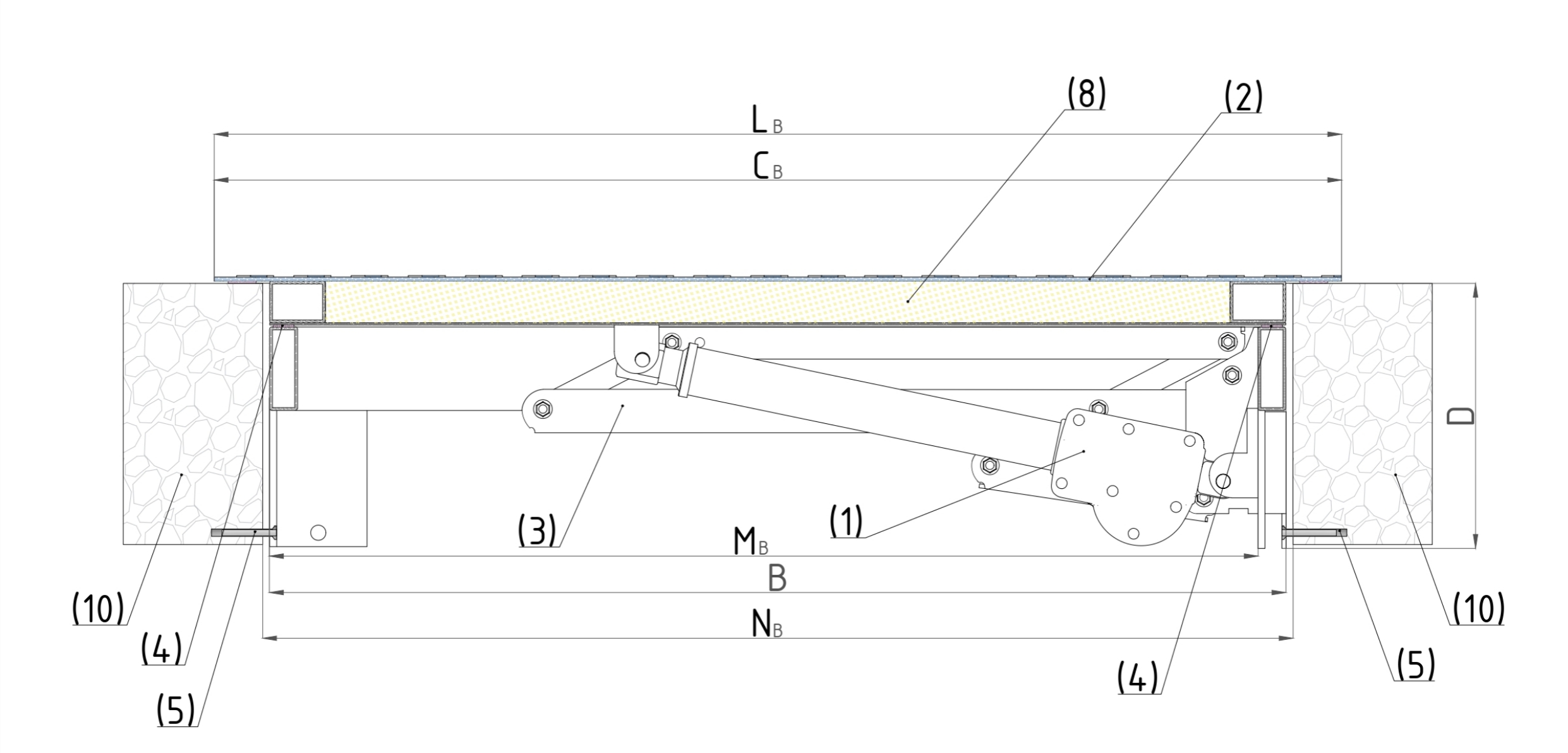

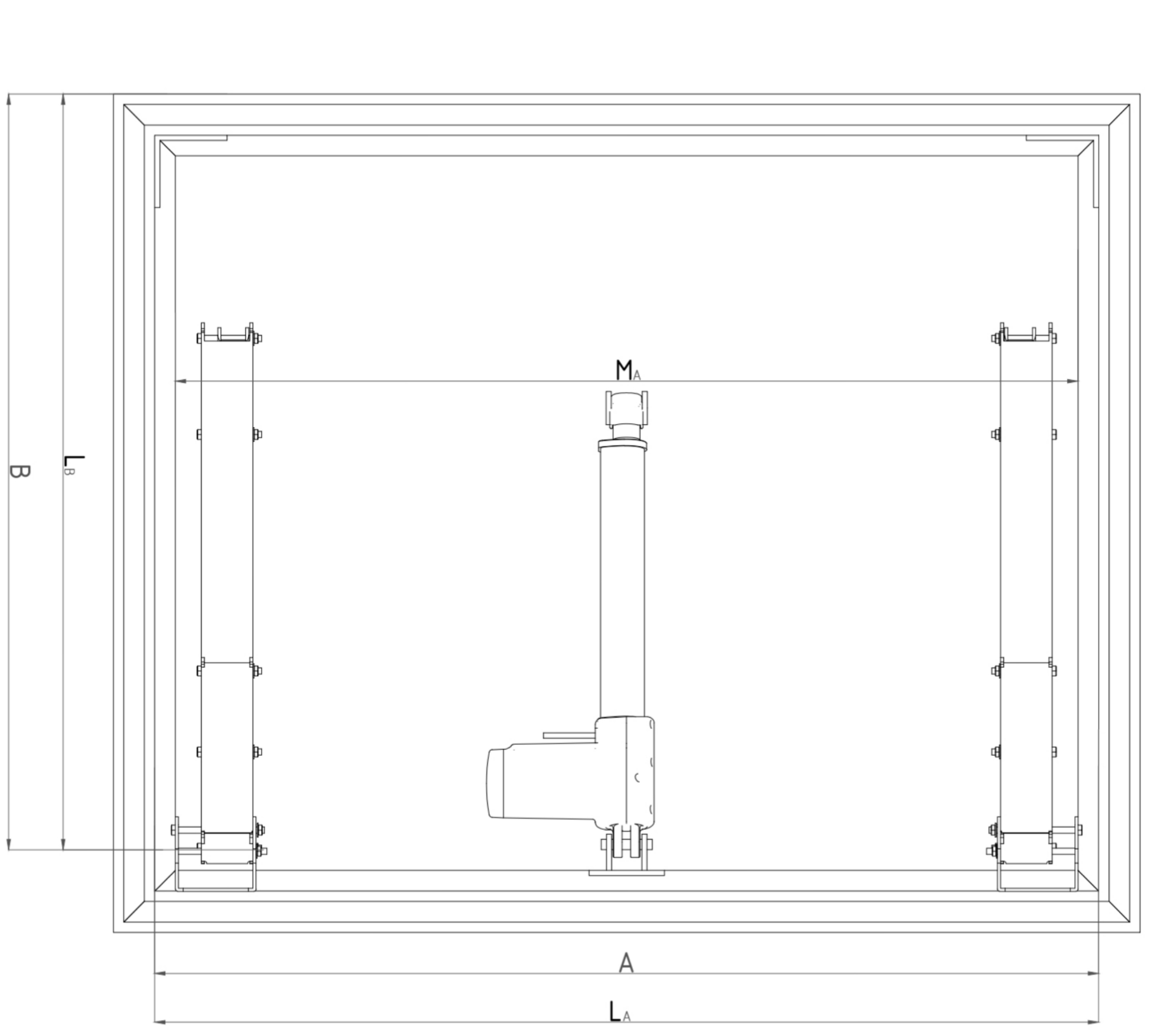

| A | Mounting Width (hinge-side) |
| B | Mounting Height |
| LA = A + 70mm | Overall width of the hatch (hinge side) |
| LB = B + 70mm | Overall height of the hatch |
| CA = A + 70mm | Door width (hinge side) |
| CB = B + 70mm | Door height |
| NA = A + 10mm | Width of the installation opening (hinge side) |
| NB = B + 10mm | Height of the installation opening |

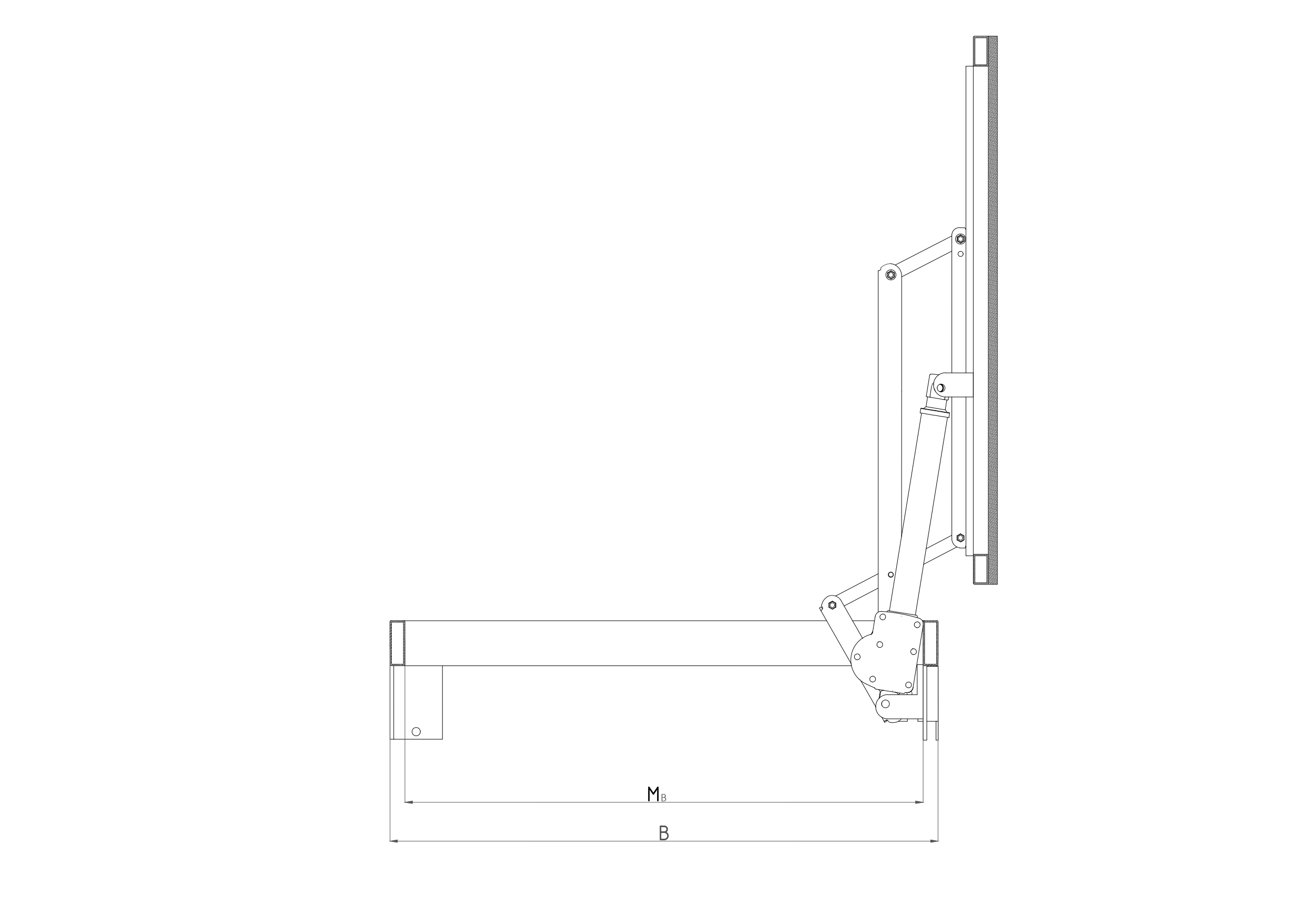

| MA = A - 40mm | Clear opening width (hinge side) |
| MB = B - 40mm | Clear opening height |
| D = 178mm | Frame depth |
| (1) | Gas spring / Electric actuator |
| (2) | Finishing material / tread plate |
| (3) | Hinge |
| (4) | Seal |
| (5) | Anchors |
| (6) | Lock |
| (7) | Lock cylinder (height adjustable) |
| (8) | Insulation |
| (9) | Hatch cover surface material |
| (10) | Slab |
