Purpose and Application

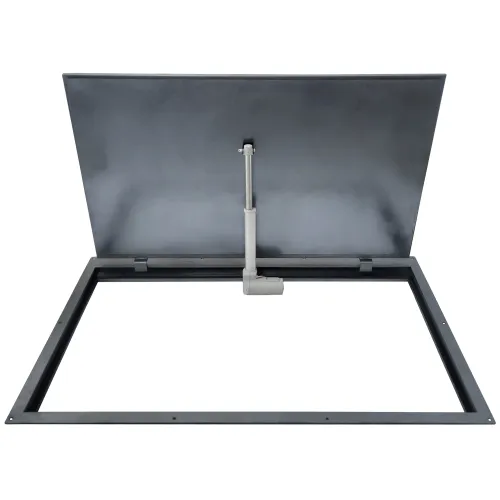

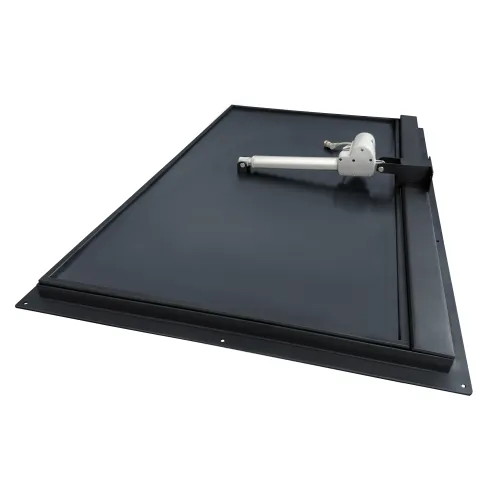

The STANDARD ELECTRO insulated floor steel hatch with electric actuator is designed for quick and easy access to basements, cellars, utility rooms, and various engineering communications
Hidden Integration and Finishing

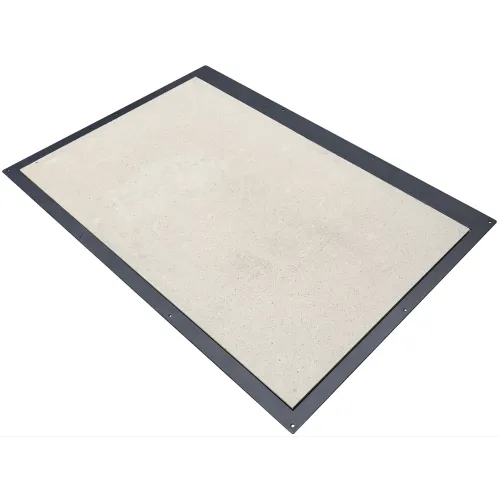

The hatch design allows for easy integration into any type of flooring, creating a continuous surface that maintains the aesthetic integrity of your space. The hatch cover is intended for finishing with ceramic tiles, porcelain stoneware, microcement, microconcrete, wood planks, laminate, linoleum, quartz vinyl, or parquet.A finishing layer thickness of up to 20 mm is allowed, including the adhesive layer. As an exception, installation of wood planks up to 30 mm thick is permitted.
Opening Mechanism and Ease of Use
The electric lifting and locking mechanism for the hatch is remotely controlled — via a wireless remote or a wall switch. Regardless of the surface type, weight, or dimensions of the structure, opening and closing are automatic, fast, and effortless — just one press is enough.
Automation Kit: Functionality and Reliability
The kit includes:

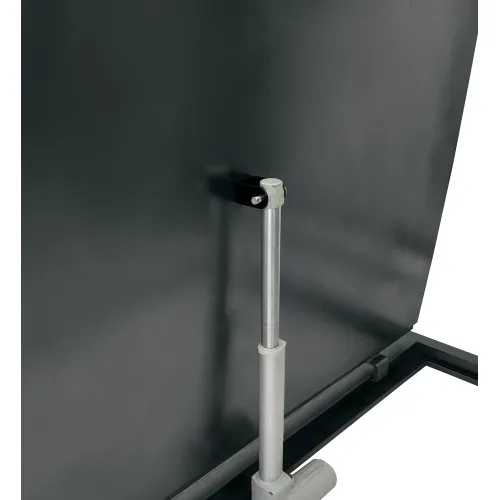

Electric Actuator
Silent operation — ideal for residential spaces
Protection rating IP66W — fully sealed, resistant to water jets
Requires no regular maintenance
Controller (Control Unit)
Protection rating IP69K — highest level of dust and water resistance
Built-in temperature sensor — prevents overheating
Waterproof connectors
Power Supply
Wireless Remote
Operating range — up to 8 meters
Cable Kit
- Cables for connecting wall switches — 5 m, 2 m
- Cables for connecting the actuator and the power supply to the controller
- Splitter for connecting two switch cables
- Additional extension cable from the controller to the actuator — 1 m
Guaranteed Safety and Reliability
Pinch Protection: If any body part or foreign object comes into contact during lid movement, the actuator automatically stops — safe for children, adults, and pets
Electromagnetic Compatibility: The device does not interfere with other equipment and is resistant to external electromagnetic influences
Structural Durability: Resistant to damage and ensures stable operation throughout its service life
Electrical Safety: Protection against electric shock — compliant with international standards
Installation
Installation is simple and requires no special skills.
Protection Against External Elements
"The hatch is fully sealed. A rubber seal runs along the entire perimeter of the frame, ensuring a tight fit. This provides full protection against dust and moisture. The hatch cover is insulated with PIR thermal insulation. When closed, it helps maintain the designated temperatures in both the lower and upper rooms.
Coating and Durability
The product is coated with a powder paint followed by thermal polymerization, which ensures high wear resistance and long-lasting surface durability.
Materials and Construction
The hatch frame is made of S235JR grade steel, which is widely used in various structural applications. To ensure strength and corrosion resistance, stainless steel pins are used in the hinges.

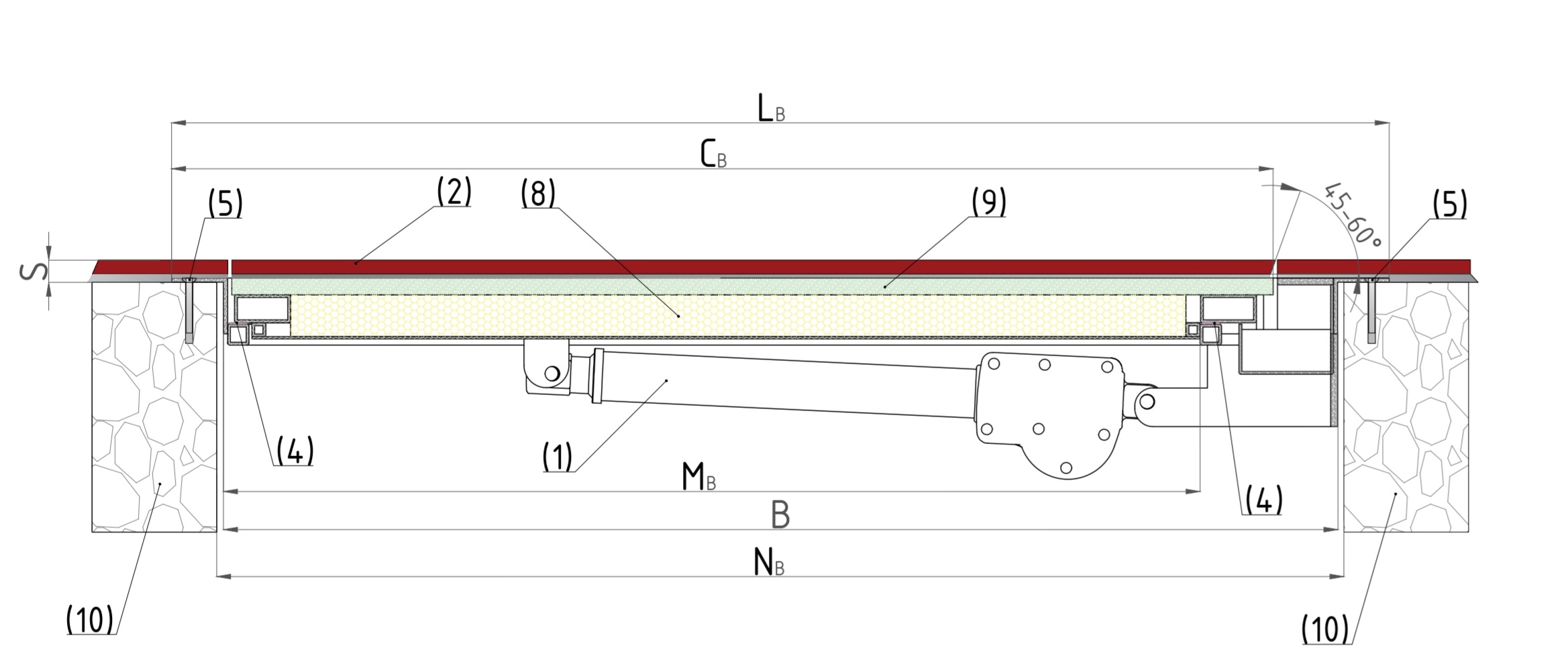

| A | Mounting Width (hinge-side) |
| B | Mounting Height |
| LA = A + 74mm | Overall width of the hatch (hinge side) |
| LB = B + 74mm | Overall height of the hatch |
| CA = A - 12mm | Door width (hinge side) |
| CB = B - 52mm | Door height |
| NA = A + 10mm | Width of the installation opening (hinge side) |
| NB = B + 10mm | Height of the installation opening |
| MA = A - 38mm | Clear opening width (hinge side) |
| MB = B - 117mm | Clear opening height |
| S ≤ 20mm | Thickness of the finishing material (including adhesive) |
| D = 103mm | Frame depth |
| (1) | Gas spring / Electric actuator |
| (2) | Finishing material / tread plate |
| (3) | Hinge |
| (4) | Seal |
| (5) | Anchors |
| (6) | Lock |
| (7) | Lock cylinder (height adjustable) |
| (8) | Insulation |
| (9) | Hatch cover surface material |
| (10) | Slab |
